The Isosonic Acoustic Ceiling Hangers - Type C are highly effective soundproofing hangers designed to prevent sound transfer through ceilings. These hangers excel in impact noise reduction and are suitable for use in both timber joist and concrete floor constructions. With a minimal ceiling height loss of approximately 75mm, Type C Hangers offer a discreet yet powerful solution for upgrading the acoustic performance of existing ceilings, providing up to 4dB better sound insulation than resilient bars. Available in boxes of 100, these hangers are ideal for residential, commercial, and industrial applications where noise control is a priority.
What is a Type C Isosonic Acoustic Ceiling Hanger?
The Type C Isosonic Acoustic Ceiling Hanger is an advanced soundproofing component designed to decouple ceilings from structural floors. Each hanger includes an isolating rubber or high-density foam pad that acts as a barrier, significantly reducing the transfer of impact sound between surfaces. This hanger is ideal for upgrading existing ceilings, especially those with lathe and plaster, as it allows the original structure to remain intact while providing superior soundproofing.
How Do Type C Isosonic Acoustic Ceiling Hangers Work?
Type C Isosonic Acoustic Ceiling Hangers work by decoupling the ceiling from the structural floor above. Each hanger includes a resilient acoustic pad that absorbs vibrations, preventing them from passing through the ceiling structure. By creating a separation between the existing ceiling and the structural floor, these hangers break the direct path of sound, reducing impact noise transmission. The decoupling mechanism within the hanger improves acoustic performance by around 3-4dB compared to resilient bars, making them a highly efficient solution for noise reduction.
Where Can the Type C Isosonic Acoustic Ceiling Hangers Be Used?
Type C Isosonic Acoustic Ceiling Hangers are versatile and suitable for use in both timber joist and concrete floor constructions. They are particularly beneficial in projects where ceiling height loss needs to be minimized, as they allow for a minimal ceiling drop of around 75mm. These hangers can be used in residential spaces, commercial buildings, and industrial environments where soundproofing is essential. They are especially effective in spaces where lathe and plaster ceilings are retained, offering enhanced sound insulation without the need for extensive demolition.
How to Install the Type C Isosonic Acoustic Ceiling Hangers
-
Prepare the Ceiling Surface: Ensure the ceiling area is free of debris and plan the hanger layout according to the ceiling’s structural requirements.
-

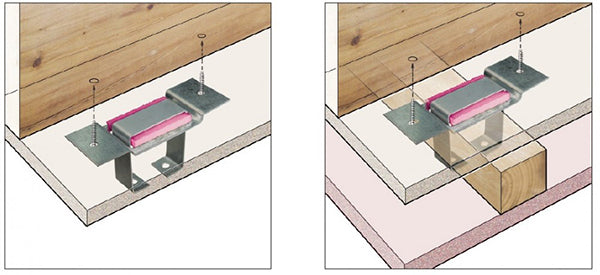

Position the Hangers: Attach the Type C Hangers to the underside of the structural floor or to the joists in timber constructions. Align them to allow for a 50 x 50mm batten at 90º to the joists in timber installations.
-
Secure the Batten or Frame: Insert and secure a timber batten or metal frame into the hangers, creating a suspended structure.
-
Attach Plasterboard: Affix plasterboard to the batten or frame to complete the decoupled ceiling. Ensure there is a slight void (about 5mm) between the joist and plasterboard for optimal sound insulation.
The installation is straightforward and conforms to Part E building regulations, making it suitable for both professional and DIY applications.
What Are the Benefits of the Type C Isosonic Acoustic Ceiling Hangers?
-
Superior Impact Noise Reduction: Provides up to 4dB more noise reduction than resilient bars, significantly decreasing impact sound transfer.
-
Minimal Ceiling Height Loss: With a drop of around 75mm, these hangers offer effective soundproofing with minimal loss of ceiling height.
-
Easy to Install: Compatible with both timber battens and metal frames, the Type C Hangers are designed for straightforward installation, even in complex structures.
-
Ideal for Retaining Existing Ceilings: Allows the existing ceiling structure, such as lathe and plaster, to be retained, reducing mess and preserving the building’s original features.
-
Enhanced Versatility: Suitable for both timber and concrete constructions, the hangers work well in various environments, from residential to industrial settings.
-
Part E Compliant: Meets UK building regulations for sound insulation, making it a reliable choice for noise control in compliance-driven projects.
Here are the main details for this product:
Dimensions: NA
Thickness: NA
Pack Size: Box of 100 hangers
Weight: NA
Density: NA
Coverage: sqm
Fire rating: NA
Thermal Conductivity:
View Product Information Guide
Visit our Fitting Instructions section for more detailed instructions relating to your specific application.
Please contact our team if you have any questions on this product.
