Tecsound FT55 AL Acoustic Pipe Wrap

Introducing the Tecsound FT 55 AL – a premium acoustic pipe wrap designed to provide superior soundproofing performance. Ideal for a variety of applications, this innovative product is easier to install than traditional soundproofing materials and delivers exceptional noise reduction.

What is the Tecsound FT 55 AL?

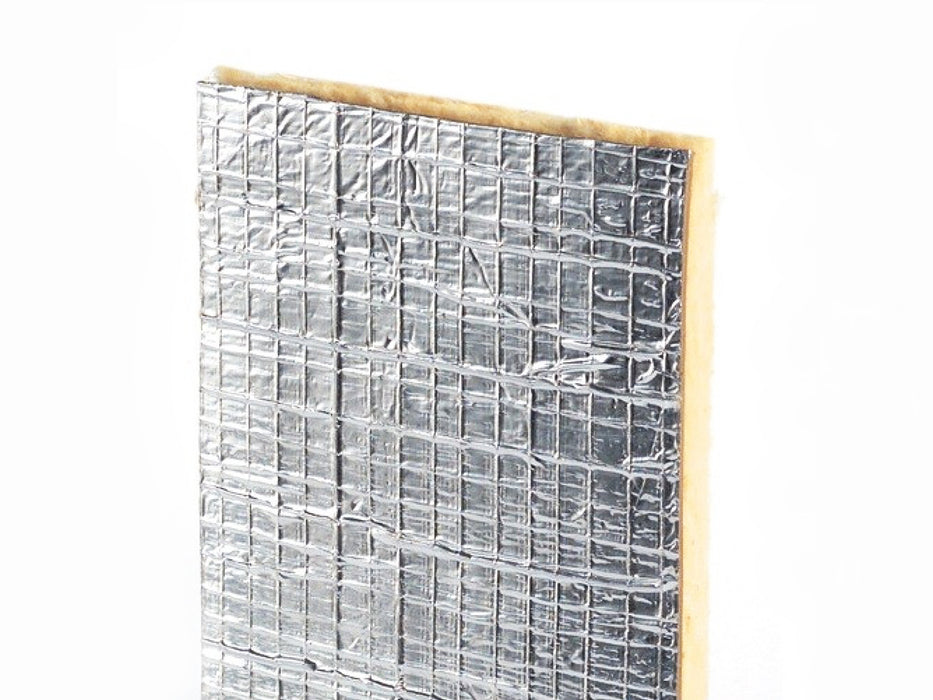

The Tecsound FT 55 AL is a high-performance acoustic pipe wrap that enhances the soundproofing of pipes and other structures. It is constructed from a combination of Tecsound synthetic acoustic membrane, porous felt, and reinforced aluminium foil. This unique combination provides excellent acoustic insulation and is flexible enough to fit various pipe shapes and sizes.

How does the Tecsound FT 55 AL work?

The Tecsound FT 55 AL increases the acoustic insulation of pipes by approximately 25 dB Rw. This superior performance is achieved through the highly absorbent Tecsound material and the high-density membrane, which together reduce both impact and airborne noise. The aluminium foil layer adds durability and further enhances soundproofing by reducing vibrations.

What are the benefits of Tecsound FT 55 AL?

• Superior Acoustic Insulation: Reduces noise by around 25 dB Rw, significantly outperforming many traditional soundproofing materials.
• Ease of Installation: The flexible material simplifies the application process; just wrap and secure with cable ties.
• Versatility: Suitable for various pipe types and sizes, as well as other structures like walls and ceilings.
• Durability: Resistant to ageing, rot, and extreme temperatures, ensuring long-lasting performance.
• Simple Handling: Easy to cut and handle, with a low thickness that facilitates installation.
• Renovation-Friendly: Ideal for both new installations and renovations.

Why use the Tecsound FT 55 AL?

The Tecsound FT 55 AL stands out for its ease of installation, superior acoustic performance, and versatility. Its flexible material makes it easier to apply than traditional soundproofing putty. Additionally, it provides a seamless and effective soundproofing solution without the need for special pieces at bends and connections.

Where can you use the Tecsound FT 55 AL?

The Tecsound FT 55 AL is perfect for a variety of applications, including:

• Acoustic insulation of drain pipes, waste pipes, and water pipes.
• Soundproofing of air conditioning vents.
• Soundproofing industrial pipes and vents.
• Improving the performance of PVC soil pipes and down pipes.
• Reducing road noise in automotive soundproofing.

How to install the Tecsound FT 55 AL?

1. Measure and Cut: Measure the pipe's circumference, add 50 mm for overlap, and cut to length.
2. Wrap: Wrap the Tecsound FT 55 AL around the pipe, starting at the bottom and working up.
3. Secure: Use cable ties every 20 cm and seal overlaps with aluminium-backed foil tape.
4. Box In: For enclosed pipes, use a double layer of plasterboard filled with mineral wool.

Product Coverage

Understanding the coverage of the Tecsound FT 55 AL is essential for efficient planning and installation. This product is designed to fit standard waste pipe sizes, ensuring optimal performance and ease of use.

• 50mm Waste Pipe:
• Circumference: 157 mm
• Coverage: One roll of Tecsound FT 55 AL can cover approximately 38 metres of 50mm (2 inch) pipework, including a small overlap.
• 100mm Waste Pipe:
• Circumference: 315 mm
• Coverage: One roll of Tecsound FT 55 AL can cover approximately 16.5 metres of 100mm (4 inch) pipework, with an 85 mm overlap.

Walls, Floors and Ceilings

Tecsound is utilised in a number of our wall, floor and ceiling solutions, head over to the relevant type to find out more:

Wall Solutions

Floor Solutions

Ceiling Solutions

How to Install the Tecsound FT 55 AL

Installing the Tecsound FT 55 AL is straightforward and designed to provide superior acoustic insulation for your pipes. Follow these detailed steps for optimal soundproofing:

1. Preparation:

• Clean the Pipe: Ensure the pipe surface is clean and free from dust, grease, and other contaminants. A clean surface ensures better adhesion of the wrap, leading to more effective soundproofing.
• Measure: Measure the circumference of the pipe and add an additional 50 mm for overlap. Accurate measurements ensure that you have the correct length of material for full coverage.
• Cut: Cut the Tecsound FT 55 AL to the desired length. For easier handling, keep strips shorter than 1.0-1.2 metres. This makes the material more manageable and simplifies the installation process, especially around bends and connections.

2. Application:

• Wrap: Wrap the Tecsound FT 55 AL around the pipe, ensuring the aluminium foil side is facing outward/upward. Start at one end and work your way to the other, overlapping in the longitudinal direction to ensure continuous insulation.
• Connection: Avoid overlapping transverse joints; instead, connect tightly to prevent any gaps in the insulation. This ensures a seamless barrier that maximizes soundproofing efficiency.

3. Securing:

• Cable Ties: Secure the wrap with cable ties every 20 cm to ensure it stays in place. This provides additional stability and helps maintain the wrap's position over time.
• Sealing: For optimal results, seal the overlaps with aluminium-backed foil tape. This step enhances the integrity of the soundproofing by ensuring no sound leaks through gaps or overlaps.

4. Enclosure:

• Boxing In: If the pipe needs to be enclosed, use a double layer of plasterboard for added soundproofing. This creates an additional barrier to noise, further enhancing the acoustic insulation.
• Filling Voids: Fill any voids with mineral wool to further enhance the acoustic performance. Mineral wool acts as an additional sound-absorbing layer, improving overall effectiveness.

By following these steps, you can achieve exceptional acoustic insulation for your pipes, significantly outperforming traditional soundproofing materials. The Tecsound FT 55 AL simplifies installation while ensuring long-lasting, high-performance soundproofing for any piping system.

Product Coverage

Understanding the coverage of the Tecsound FT 55 AL is essential for efficient planning and installation. This product is designed to fit standard waste pipe sizes, ensuring optimal performance and ease of use.

Standard Waste Pipe Sizes

• 50mm Waste Pipe:
  • Circumference: 157 mm
  • Coverage: One roll of Tecsound FT 55 AL can cover approximately 38 metres of 50mm (2 inch) pipework, including a small overlap.
• 100mm Waste Pipe:
  • Circumference: 315 mm
  • Coverage: One roll of Tecsound FT 55 AL can cover approximately 16.5 metres of 100mm (4 inch) pipework, with an 85 mm overlap.

By accurately measuring your pipes and understanding the product coverage, you can ensure you have the right amount of Tecsound FT 55 AL for your project, minimizing waste and maximizing efficiency. This tailored fit ensures that every metre of pipe is effectively insulated, delivering superior acoustic performance and a quieter environment.
